BioTioo BL Nugget-Edition (without agitator, with special fan)

The only dry composting toilet fitting trouble-free into the small toilet storage compartment of the current Ford Westfalia Nugget!!!

For all Ford Nugget-Models built after 2014 with short wheel base!!!

• Housing made of stainless steel - hygienic, resistant to ageing, eco-friendly

• Bowl and lid made of polypropylene (PP-C)

• Width 332 mm, depth 385 mm, height 388 mm (ultra compact with maximised tank volume)

• Weight: approx. 6.5 kg

• load capacity up to 200 kg

• Urine tank with 9.9 l usable volume

• Solids container (volume 15 liters)

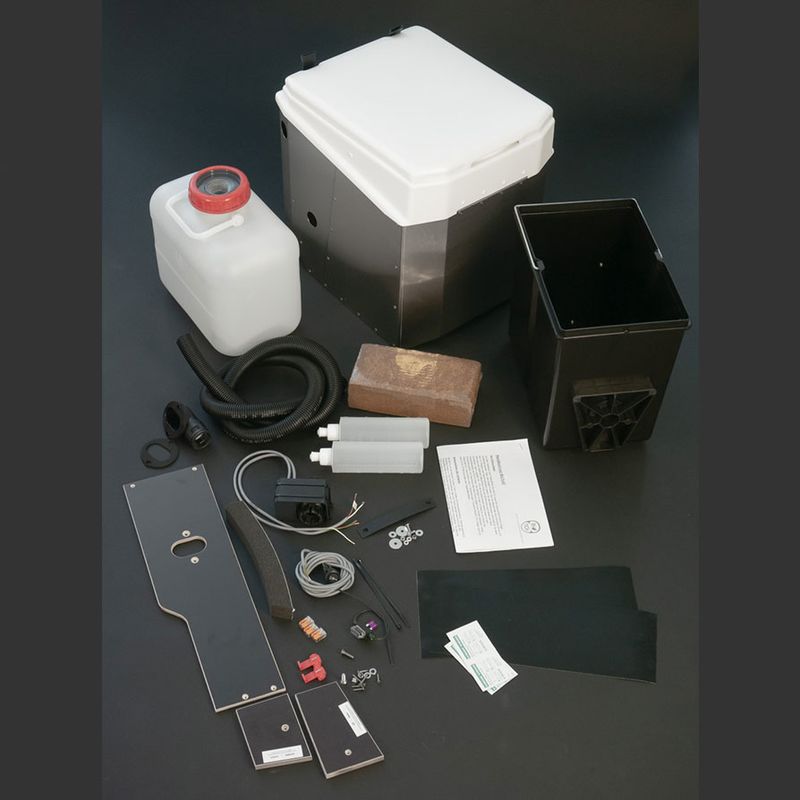

Delivered items:

• Housing with bowl and lid
• Solids container
• Urine tank with patented odor trap, cap nut and extra large spout for quick emptying
• Docking Station for air ventilation: the patented tailor-made system for the Ford Nugget enables ventilation of the BioTioo in the storage compartment. After pull out the toilet is without hose connection which eases the handling inside the vehicle.
• Side handle (the BioTioo is at right angle in the storage compartment and the handle eases pull out)
• 2 sliding films for the bottom (the PTFE coated fabric is self-adhesive, preserve the vehicle floor and reduce manual force when pulling out)
• Fan unit for automatic interval or continuous operation and integrated undervoltage protection
• Control switch for the fan unit (on / off / interval) with connection terminals and mounting material
• Fan angle 90 degrees (hose connection on the housing, optionally mountable on the right or left)
• 1.5 m fan hose (outer diameter 28 mm)
• 2 spray bottles (1x to clean the urine bowl and 1x to use the BioTioo as a auxiliary bidet)
• 1 coconut brick (drying material for use in the solids container)
• Operating and assembly instructions

For which use case is the BioTioo^® BL Nugget Edition designed?

By means of the docking station this is the tailor-made solution for the current Ford Westfalia Nugget with short wheel base. It fits into the storage compartment of the Nugget with pop-up roof as well as with a high roof. If the storage compartment is big enough it also fits into older Nuggets. For installation in older Nuggets the Docking Station has to be slightly modified.

Video-Presentation for installation of the Docking Station: Youtube Link
